Details

---

The Onyx Electric Wheelchair is a powerful, compact, and user-friendly mobility aid built for seniors, rehabilitation patients, and individuals with physical disabilities. Designed with a strong steel frame, foldable design, and automatic electromagnetic braking, it offers superior mobility, comfort, and peace of mind — whether at home, in the hospital, or on the go.


---

Key Features

✅ Space-Saving Foldable Design
With a folding size of 930×410×730mm, the Onyx fits easily into most car boots — ideal for hospital visits, travel, and shopping trips across Malaysia.

✅ Durable Steel Construction
Built with a heavy-duty steel frame, this power wheelchair supports up to 120KG, suitable for all road types including uneven pavements and ramps.

✅ Dual Battery Options for Longer Travel
Equipped with 24V 12Ah batteries (optional 20Ah lead-acid), offering a travel range of 10–20KM per full charge — great for daily use and outdoor trips.

✅ Automatic Electromagnetic Brake System
Designed for safe usage even on slopes up to 9°, the Onyx stops smoothly and securely thanks to its built-in electromagnetic braking system.

✅ Ergonomic & Comfortable Seating
Enjoy a spacious and supportive seat (430×440×430mm) with 10-inch front wheels and 16-inch rear wheels that absorb shock and provide a smooth ride.

✅ Quick Charging, Simple Operation
Charges fully in just 6 hours, and includes an intuitive joystick control for effortless movement, even for first-time users or caregivers.


---

👤 Who Should Use the Onyx Electric Wheelchair:

• Ideal for elderly mobility assistance, rehabilitation use, or post-surgery recovery

• High-quality build at an affordable price point

• Trusted by users looking for durable and travel-friendly power wheelchairs

---

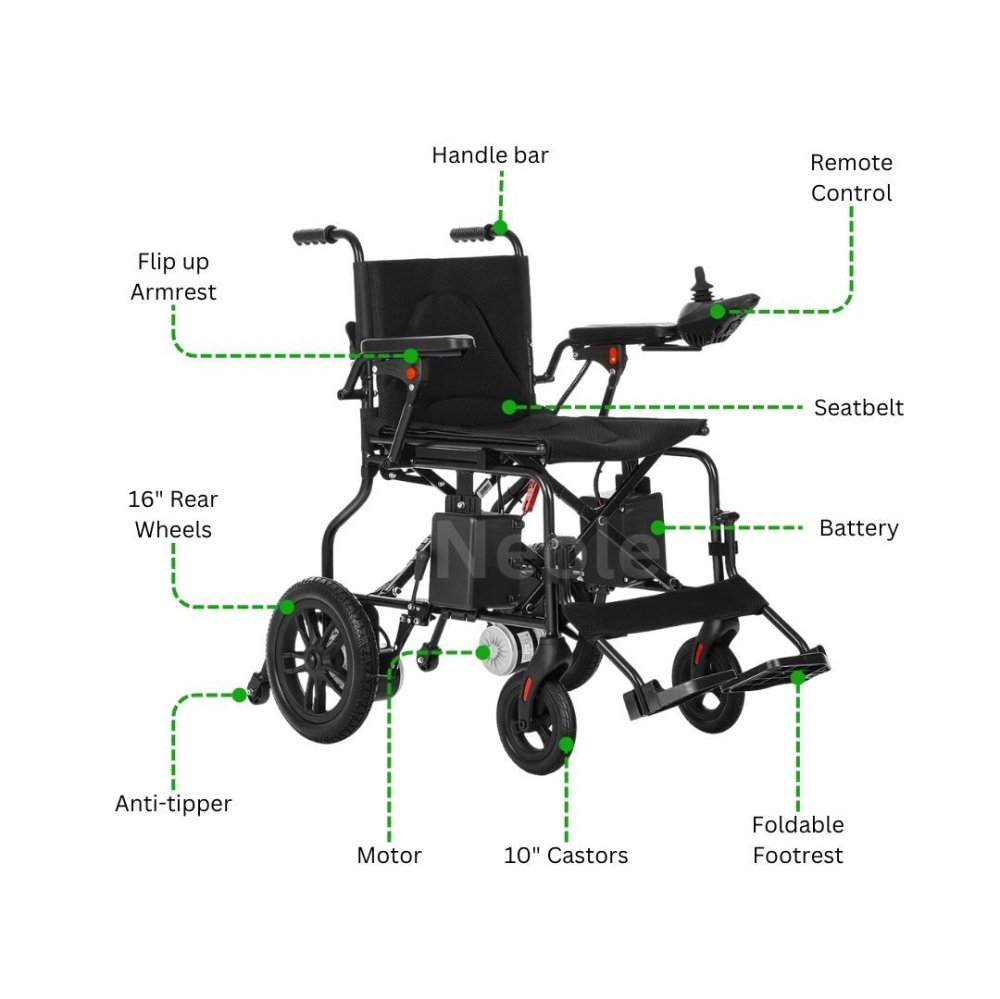

📏 Product Specifications:

• Frame: Steel
• Motor: 24V 250W*2
• Battery: 24V 12Ah
• Range: about 20km
• Charging: 6hours
• 360-degree direction controller
• Speed upto 6km/h
• Front wheel: 10-inch non inflatable tire
• Rear wheel: 16-inch non inflatable tire
• Brake Type: Electromagnetic automatic brake
• Foldable frame
• Flip up armrest footrest
• Anti tipping safety feature to prevent backwards falling can be fitted into Axia & many car's boot easily

📏 Dimensions:

• Total length: 1140mm
• Overall width: 660mm
• Total height: 910mm
• Seat cushion width: 430mm
• Seat cushion depth: 430mm
• Net weight: 25kg (without battery) / 33kg (with battery)
• Max Loading: 120kg
• Folded Size: 930×410×730mm
